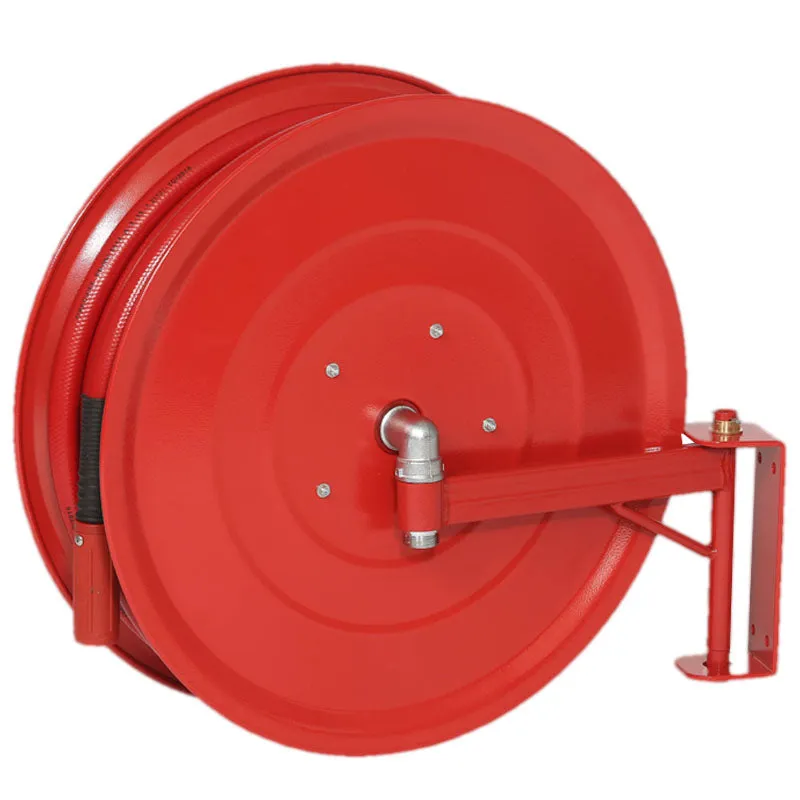

The 19mm x 30m Manual Swinging Fire Hose Reel comes with a swinging bracket. This means the fire hose reel is fixed to a hinge allowing it to swing out when in use, helping you reach the fire easily. This particular fire hose reel is also manually operated, enabling you to activate the water when you need it by releasing the gate valve.

19mm x 30m Manual Swinging Fire Hose Reel Features:

• Certified to LPCB EN671-1
• Easily connects to a water outlet
• High-quality construction using brass and powder coated steel
• Has anti-ultraviolet side discs
• Supplied with the 19mm x 30m hose attached and ready to install as standard
• Comes with a high-pressure jet spray nozzle, gate valve and flexible water inlet pipe
• Brass internal parts for corrosion resistance
• Hose can be deployed from either side
• Maximum working pressure of 12 bar
• 2 year guarantee


Enable Quick Access to a Fire Hose Reel

Our swinging fire hose reel allows for a rapid deployment in the event of an emergency. Time is of the essence during a fire so having a reliable fire hose reel on hand is essential to ensure an immediate response. The swinging feature of this fire hose reel also offers greater coverage as the swinging hinge provides a range of motion, reaching multiple locations.

Choose a Manual Fire Hose Reel From Fire & Safety Centre

Enable a fast response to fires with this manual fire hose reel that provides quick access to water and easy operation. At Fire and Safety Centre, we strive to provide our customers with all the fire safety essentials. Our range of has something for everyone. From automatic to manual fire hose reels, discover our selection of today to protect your workplace from devastating fires.

Specifications

Approvals: LPCB
Hose Length: 30m
Hose Diameter: 19mm
Reel Diameter: 555mm
Reel Depth: 210mm

Downloads

FAQs

Manual Swinging Fire Hose Reel FAQs

Are you allowed to use a fire hose reel?

Fire hose reels are typically intended for use by building occupants as a first response to small fires. However, it is recommended that only trained personnel should use fire hose reels to ensure the safety of themselves and others.

In what situation might you use a swing hinged type hose reel?

A swinging fire hose reel is particularly useful in situations where you need to cover a larger area or reach around corners in a building. This type of fire hose reel is ideal for spaces like warehouses, large offices, or industrial settings where the hose needs to be quickly deployed and manoeuvred around obstacles or into different rooms.

How does a manual hose reel work?

A manual fire hose reel operates through a simple hand-cranked mechanism that allows the user to unwind the hose for use and rewind it for storage. To use it, you simply pull out the hose to the desired length, turn on the water supply, and when finished, manually wind the hose back onto the reel using the crank handle.
